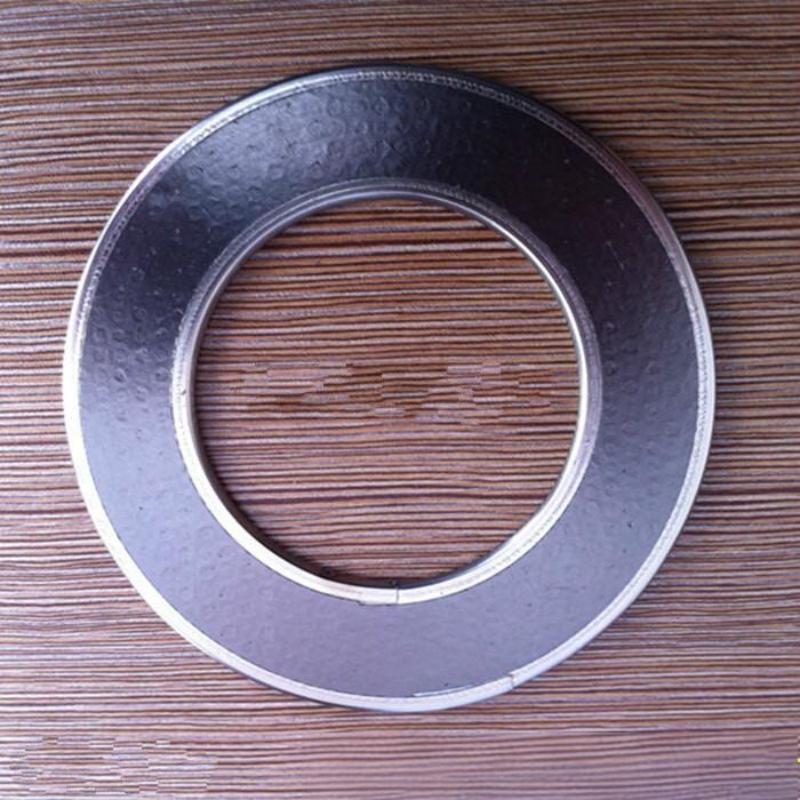

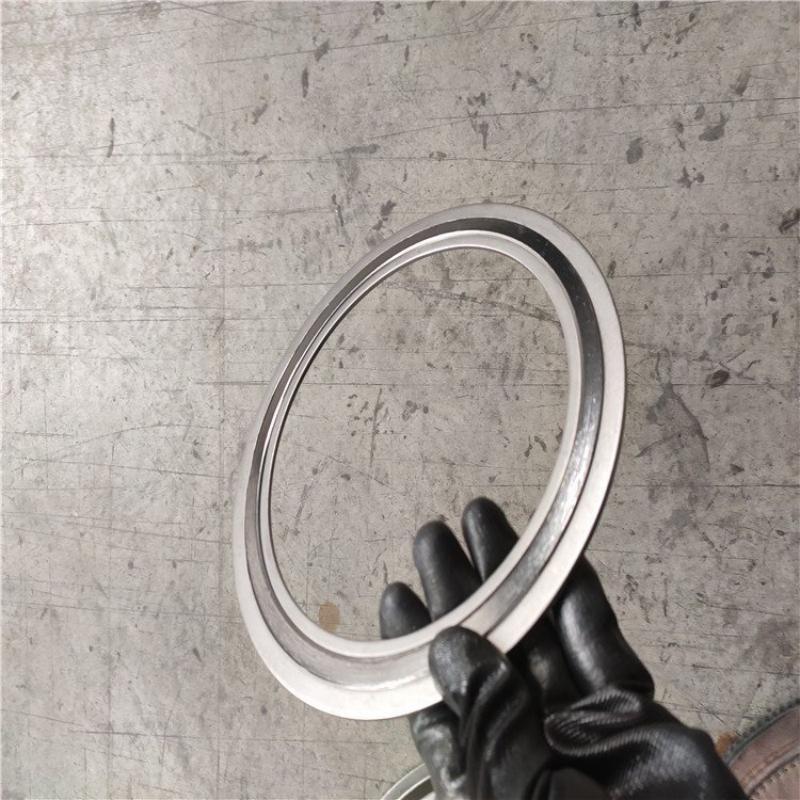

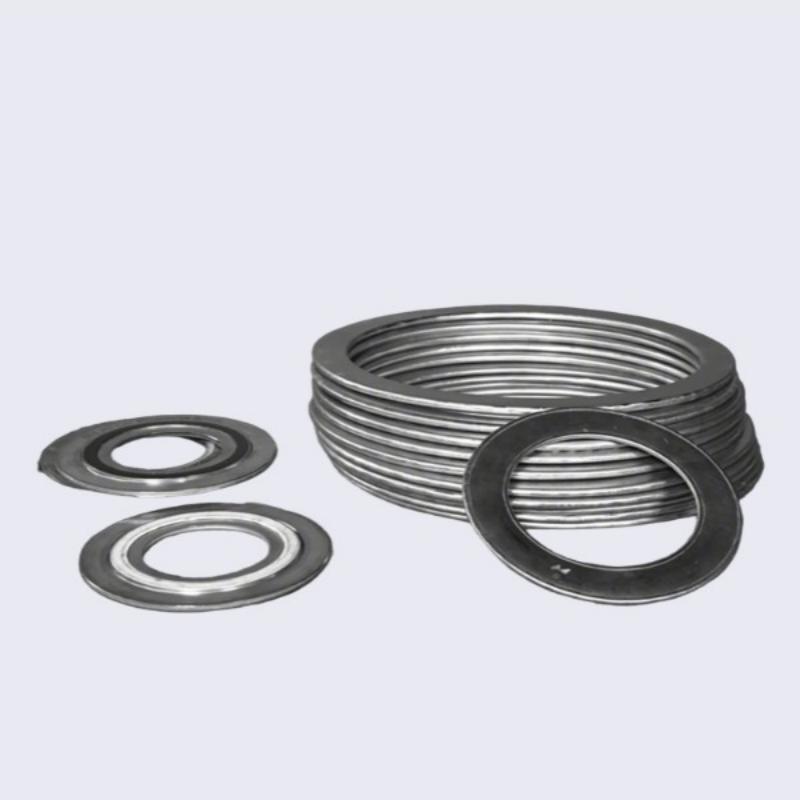

Stainless Steel Coated Graphite Gasket

No.LL-GBG-02

A composite sealing component with flexible graphite as the core and stainless steel sheet (304/316/316L, etc.) as the outer cladding. It integrates graphite’s excellent sealing performance, temperature, and corrosion resistance with stainless steel’s structural strength and deformation resistance, enabling long-term, reliable sealing under complex working conditions for various flanges, valves, and other sealing surfaces.

Description

Core Features

Full Encapsulation Design: Features a high-purity flexible graphite core completely encased in a precision-formed stainless steel (SS304, SS316L) jacket, preventing direct media contact with the graphite.
Enhanced Thermal Barrier: The metal coating acts as a shield against oxidation, allowing the gasket to operate reliably in oxidizing environments up to 650°C—extending the thermal limits of standard graphite.
High Mechanical Integrity: The steel coating provides structural rigidity, making the gasket exceptionally resistant to high-pressure blowouts and physical damage during the installation process.
Universal Chemical Protection: Maintains universal chemical resistance across the pH 0-14 range, while the metal jacket provides a physical defense against erosion from high-velocity or abrasive fluids.

Products Applications:
Stainless Steel Coated Graphite Gaskets are widely used for flange sealing in industrial equipment, and are particularly suitable for large-diameter pressure vessels such as heat exchangers, reactors, boilers, and pipeline valves. Their typical application scenarios cover petrochemical, power engineering, machinery manufacturing, refrigeration equipment, and other fields, capable of adapting to medium and low-pressure working conditions. In specific equipment, they are often used for static sealing at flange connections of pumps, valves, tower manholes, and handholes, and have good sealing adaptability to media such as steam, hydrogen, solvents, and hydrocarbons.

Company Introduction

Headquartered in Ma'anshan City — a national civilized city on the banks of the Yangtze River — Mer-Eagle Industry Co., Ltd. (Ma'anshan) serves as the headquarters of Ma'anshan Liluan Technology Co., Ltd. The company covers approximately 30,000 square meters and specializes in the R&D, production, sales, and installation of mid-to-high-end thermal insulation materials, industrial special fasteners (including graphite packing), and special metal surface treatment agents.
Mer-Eagle holds international ISO "three-in-one" management system certification (quality, environment, and occupational health & safety) and has been recognized as a Provincial High-Tech Enterprise and an Anhui Province Quality Trustworthy Enterprise.
With 20 years of dedicated research, an in-house R&D center, and academic collaboration with Taiyuan University of Technology, Mer-Eagle has secured 15 national patents. Its core rock wool products meet the standards of leading markets in Europe and the United States, and are distributed both domestically and internationally.
Guided by the philosophy of "Technology First, Quality-Oriented, Service Supreme", Mer-Eagle is committed to delivering excellence to partners worldwide.
