Reinforced Graphite Gaskets

No.LL-GBG-01

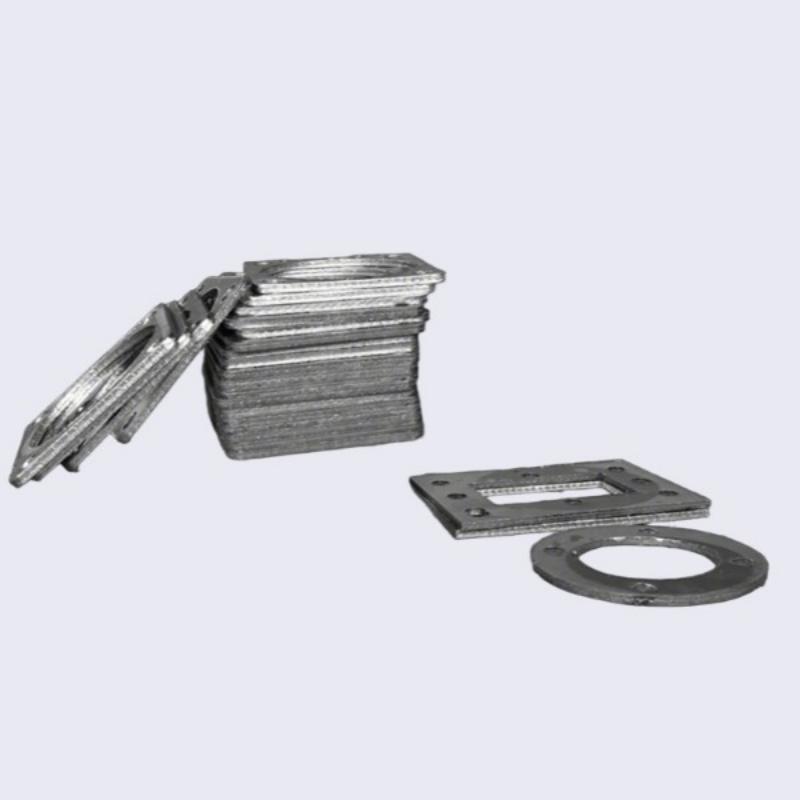

Graphite composite gaskets, also known as reinforced graphite gaskets or high-strength graphite gaskets, are punched or cut from reinforced graphite sheets. They offer excellent corrosion resistance, resistance to high and low temperatures, good compression resilience, and high strength. Common inner-layer reinforcing materials for reinforced graphite gaskets include SS304, SS316 or tinplate, with a thickness of 0.1~0.127mm. The reinforcement forms include punched plate reinforcement, mesh plate reinforcement, and flat plate reinforcement. The commonly used material is 304 reinforced graphite.

Get The Latest Quote

Description

Core Features

Superior Sealability: Flexible graphite material possesses excellent compression recovery, filling micro-imperfections and irregularities on flange surfaces to ensure a tight seal even under low bolt loads.

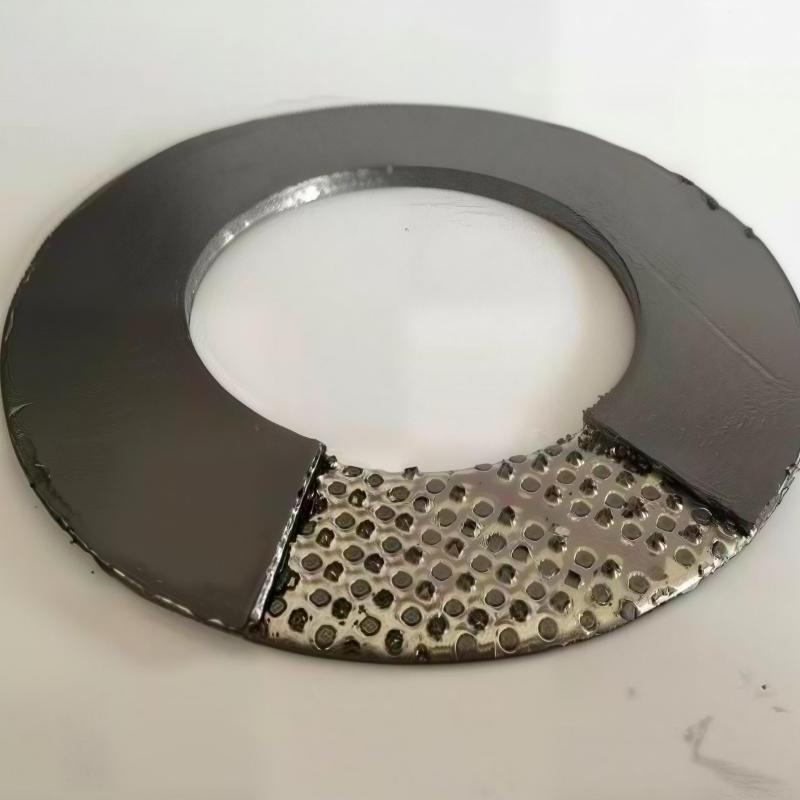

Metal Core Reinforcement: An internal insert of SS304/SS316 foil or tanged (perforated) metal plate significantly enhances the gasket's anti-blowout capability and mechanical handling strength.
Extreme Temperature Range: Capable of withstanding up to $3000^\circ C$ in non-oxidizing atmospheres and remaining stable up to $450^\circ C$ in oxidizing environments—far surpassing standard rubber gaskets.
Universal Chemical Resistance: Resistant to most chemical media (pH 0-14), except for strong oxidizing acids, making it a "universal" sealer for the petrochemical and power industries.

Product Features:

Possesses excellent corrosion resistance, resistance to high and low temperatures, adaptability to high and low pressures, good compression resilience, and high strength.

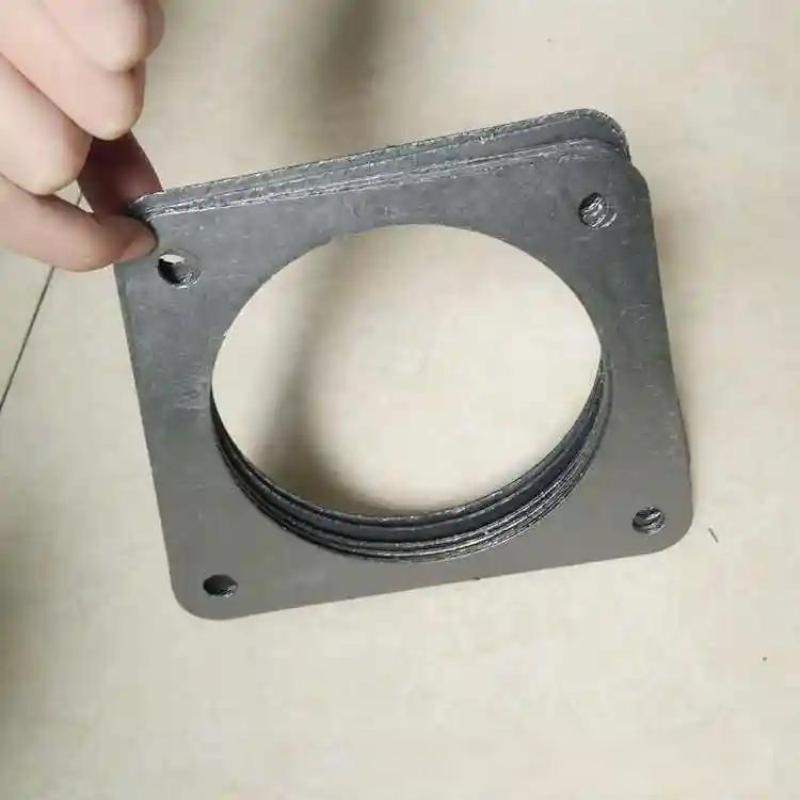

It can be cut into complex sealing gaskets, such as level gauge gaskets, flanges with bolt holes, and other special-shaped sealing gaskets.
Easy to install and not prone to damage, it is an ideal sealing product for the connection of sealing surfaces of large-diameter pressure vessel flanges.

Common Applications

Petrochemical & Refineries: Used for flange sealing in heat exchangers, towers, vessels, and high-temperature oil pipelines.
Steam Systems & Power Plants: Specifically suitable for high-pressure steam valves, pump casings, and boiler feed water system sealing.
Exhaust Manifolds: Withstands high-temperature engine exhaust gases, preventing leaks and maintaining system pressure.
Pulp, Paper & Chemical Processing: Ideal for high-temperature process stages involving corrosive chemicals and slurries.
