Jacketed Metal Gasket

No.LL-IFG-03

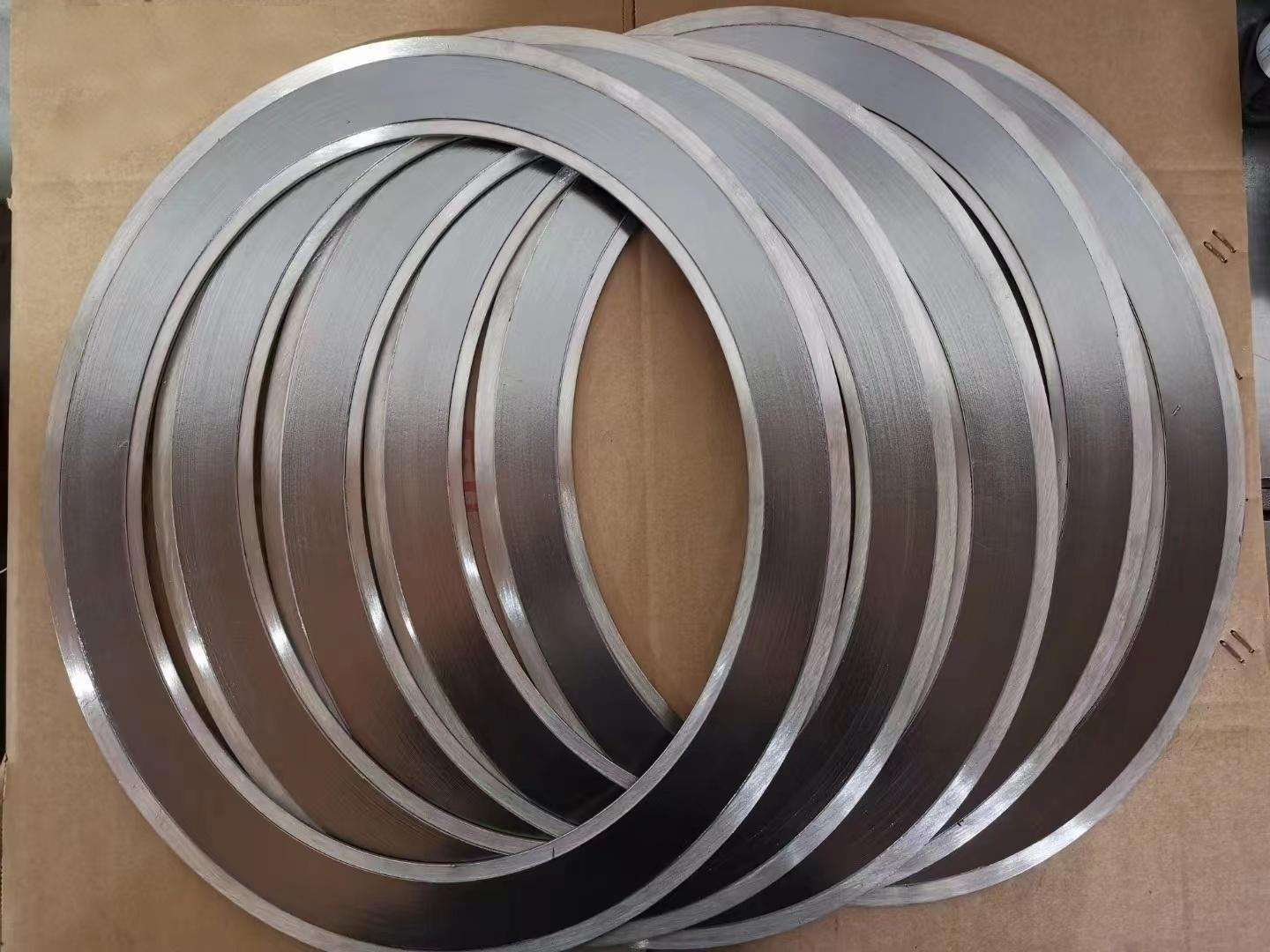

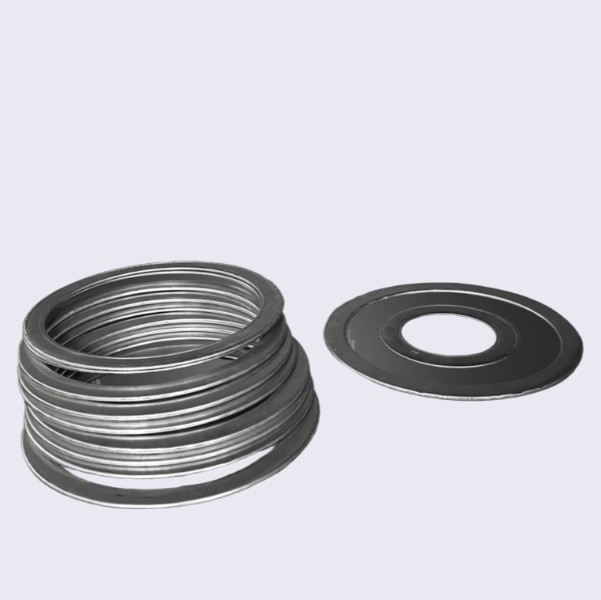

Jacketed Metal Gasket refer to composite gaskets that use non-metallic materials (flexible graphite, asbestos rubber sheet, ceramic fiber, etc.) as the core and are clad with thin metal sheets via special processes. Classified by cross-section, they are generally divided into two types: flat-clad type and corrugated-clad type. They are one of the most traditional sealing gaskets.

Description

Core Features

· Precision-machined concentric serrated/corrugated profile on solid metal face.

· Available in 304/316L stainless steel, carbon steel, and alloy options.
· All-metal construction; optional graphite/PTFE coating for dual-seal reliability.
· Custom sizes & standards: ASME B16.20, HG/T 20592, and RF/MFM ring joints.

Technical Advantages

1. High-pressure & high-temperature resistant sealing for severe service.

2. Excellent anti-fatigue performance under cyclic loading conditions.

3. Low bolt-load requirement while maintaining tight sealing integrity.

4. Durable, reusable, and long service life, reducing maintenance costs.

Product Application

Ceramic fiber gaskets, with high temperature resistance, thermal insulation, chemical stability, and eco-friendly lightweight features, are applied in high-temperature industries as follows:

Metallurgy: Sealing/insulation for ladles, tundishes, submerged nozzles, furnace doors, flue flanges, furnace walls, and furnace cars (≥1000℃).

Petrochemical & Power: Sealing/insulation for boiler roofs, flue/pipeline flanges, turbine/generator components, refinery heaters and reactors (resists high-temperature flue gas/media).

Kilns: Sealing/insulation for ceramic/glass/refractory kiln doors, wall joints, observation ports and kiln furniture (cuts heat loss, improves efficiency).

Others: Aerospace (temporary insulation for engine test benches); Building Materials (sealing/insulation for cement rotary kilns, gypsum furnaces); Environmental Protection (sealing for waste incinerator flues/furnaces).

Attention: Avoid prolonged contact with strong alkaline media; use alkali-resistant coatings or alternative gaskets instead.

Headquartered in Ma'anshan City — a national civilized city on the banks of the Yangtze River — Mer-Eagle Industry Co., Ltd. (Ma'anshan) serves as the headquarters of Ma'anshan Liluan Technology Co., Ltd. The company covers approximately 30,000 square meters and specializes in the R&D, production, sales, and installation of mid-to-high-end thermal insulation materials, industrial special fasteners (including graphite packing), and special metal surface treatment agents.
Mer-Eagle holds international ISO "three-in-one" management system certification (quality, environment, and occupational health & safety) and has been recognized as a Provincial High-Tech Enterprise and an Anhui Province Quality Trustworthy Enterprise.
With 20 years of dedicated research, an in-house R&D center, and academic collaboration with Taiyuan University of Technology, Mer-Eagle has secured 15 national patents. Its core rock wool products meet the standards of leading markets in Europe and the United States, and are distributed both domestically and internationally.
Guided by the philosophy of "Technology First, Quality-Oriented, Service Supreme", Mer-Eagle is committed to delivering excellence to partners worldwide.

FAQ
1. Who are we?
Anhui Liluan Technology Co., Ltd. is a specialized manufacturer of high-quality insulation materials, established in 2009, with a focus on delivering reliable solutions for various industries.

2. What temperature and pressure ranges can jacketed metal gaskets handle?

They maintain stable sealing under high temperature and high pressure, ideal for pressure vessels, heat exchangers, and flanges in petrochemical, refining, and power industries.

3. What material options are available for jacketed metal gaskets?
We provide 304/316 stainless steel and carbon steel metal jackets, with flexible graphite or non-asbestos inner fillers to match different corrosion and temperature needs.

4. Can you supply custom gaskets for specific industrial projects?
Yes. Standard sizes are in stock for fast delivery. Custom dimensions, shapes, and material combinations are supported for bulk project procurement.

5. What services can we provide?
We provide comprehensive services, including product consultation, customized design, efficient production, quality assurance, and reliable logistics support to ensure client success.
