High-Strength Graphite Gaskets

No.LL-GBG-03

Graphite composite gaskets, also known as reinforced graphite gaskets or high-strength graphite gaskets, are punched or cut from reinforced graphite sheets. They offer excellent corrosion resistance, resistance to high and low temperatures, good compression resilience, and high strength. Common inner-layer reinforcing materials for reinforced graphite gaskets include SS304, SS316, or tinplate, with a thickness of 0.1~0.127mm. The reinforcement forms include punched plate reinforcement, mesh plate reinforcement, and flat plate reinforcement. The commonly used material is 304 reinforced graphite.

Description

Core Features

Multi-Layer Composite Structure: Features multiple layers of high-purity flexible graphite interleaved with several SS304/SS316L tanged or foil inserts, providing far greater structural integrity than single-core gaskets.
High-Density Compression: Utilizes a higher-density graphite grade to resist crushing under extreme bolt loads while maintaining a gas-tight seal.
Superior Blowout Resistance: The multi-layered metal reinforcement acts as an internal skeleton, making the gasket virtually immune to high-pressure blowouts in critical pipe systems.
Extreme Thermal Stability: Maintains a reliable seal in temperatures ranging from $-200^\circ C$ up to $3000^\circ C$ in non-oxidizing atmospheres.

Product Features:

Possesses excellent corrosion resistance, resistance to high and low temperatures, adaptability to high and low pressures, good compression resilience, and high strength.

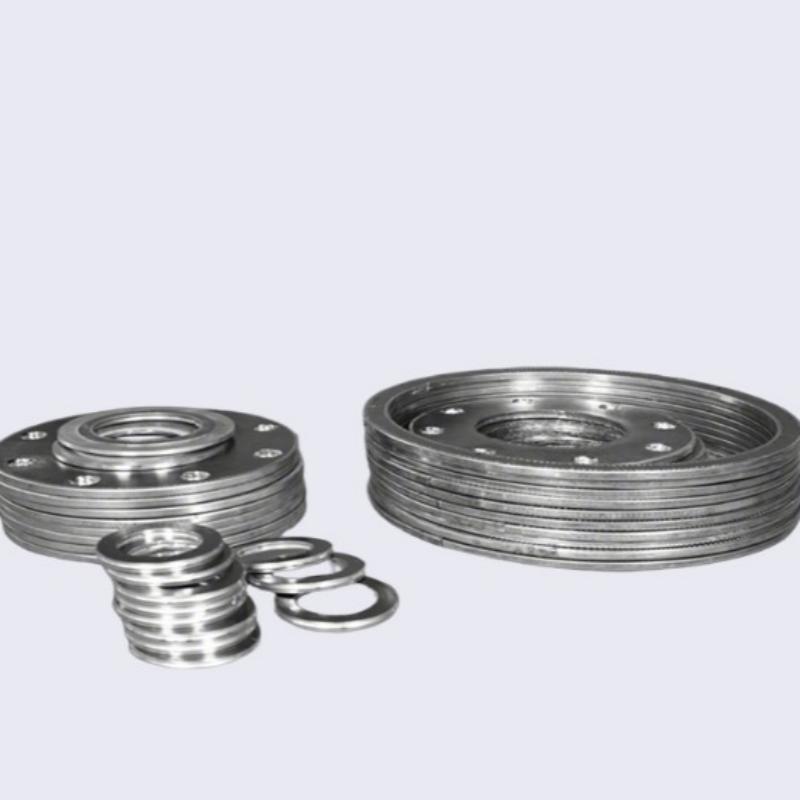

It can be cut into complex sealing gaskets, such as level gauge gaskets, flanges with bolt holes, and other special-shaped sealing gaskets.
Easy to install and not prone to damage, it is an ideal sealing product for the connection of sealing surfaces of large-diameter pressure vessel flanges.

Common Applications

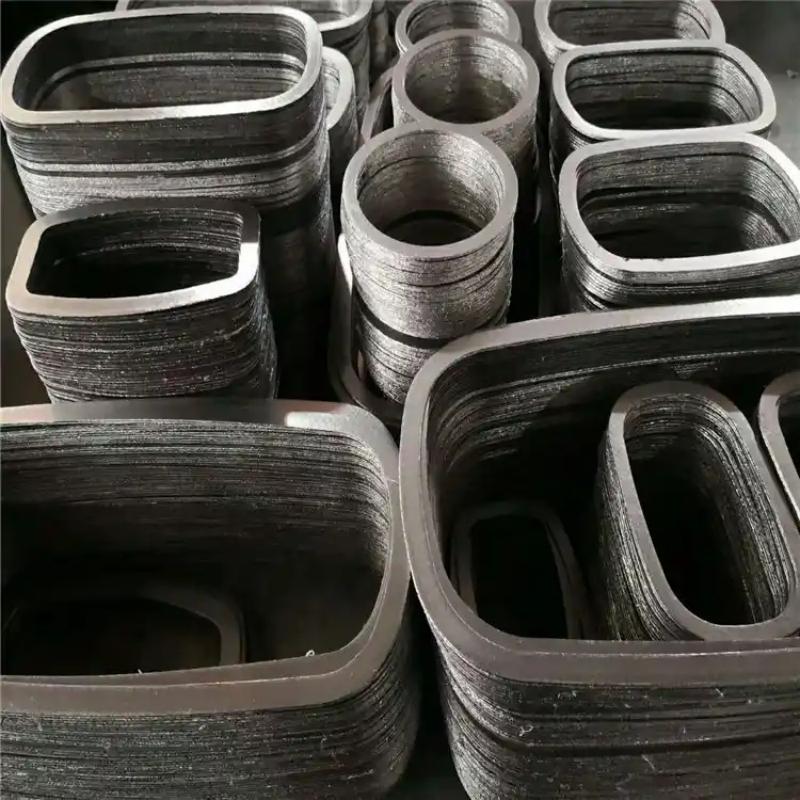

High-Pressure Valve Bonnets: The primary choice for sealing high-pressure valves in the power and petrochemical sectors.

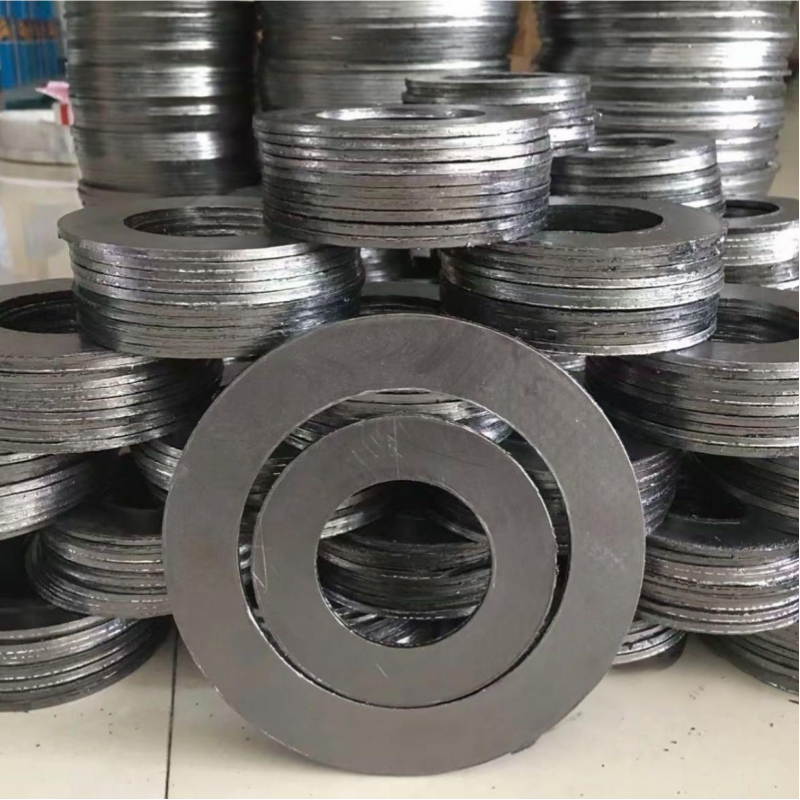

Large Diameter Flanges: Ideal for large heat exchangers and pressure vessels where high bolt loads are required to achieve a seal.
Steam Headers & Mainlines: Reliable for high-temperature steam distribution where pressure fluctuations are frequent.
Critical Refining Processes: Used in hydrocrackers and catalytic reformers, where safety and blowout prevention are paramount.

Company Introduction

Headquartered in Ma'anshan City — a national civilized city on the banks of the Yangtze River — Mer-Eagle Industry Co., Ltd. (Ma'anshan) serves as the headquarters of Ma'anshan Liluan Technology Co., Ltd. The company covers approximately 30,000 square meters and specializes in the R&D, production, sales, and installation of mid-to-high-end thermal insulation materials, industrial special fasteners (including graphite packing), and special metal surface treatment agents.
Mer-Eagle holds international ISO "three-in-one" management system certification (quality, environment, and occupational health & safety) and has been recognized as a Provincial High-Tech Enterprise and an Anhui Province Quality Trustworthy Enterprise.
With 20 years of dedicated research, an in-house R&D center, and academic collaboration with Taiyuan University of Technology, Mer-Eagle has secured 15 national patents. Its core rock wool products meet the standards of leading markets in Europe and the United States, and are distributed both domestically and internationally.
Guided by the philosophy of "Technology First, Quality-Oriented, Service Supreme", Mer-Eagle is committed to delivering excellence to partners worldwide.

FAQ
1. Who are we?
Anhui Liluan Technology Co., Ltd. is a specialized manufacturer of high-quality insulation materials, established in 2009, with a focus on delivering reliable solutions for various industries.

2. What working conditions do high-strength graphite gaskets adapt to?

They are specially designed for high-temperature and high-pressure sealing scenarios. Commonly used for flanges, valves, boilers, and pipeline equipment in chemical, petrochemical, power, and metallurgical industries.

3. What makes high-strength graphite gaskets different from ordinary gaskets?

Featuring excellent tensile strength and superior compression resilience, they resist cracking and deformation under extreme working conditions. They provide zero-leakage sealing, high temperature resistance, and great chemical stability for long-term industrial use.

4. Do you offer custom specifications and bulk order support for these graphite gaskets?

Yes. We have a full range of standard specifications in stock for quick shipment. Customized sizes, thicknesses, and special processing are supported to meet your bulk project and industrial procurement needs.
