When designing insulation systems for modern commercial and industrial projects, selecting the right variant of rock wool is critical to ensuring long-term thermal efficiency and structural compliance. While standard rock wool products share excellent fire-resistance properties, their sub-categories are engineered for vastly different environments.
As inquiries for Foil-Faced Rock Wool Boards continue to rise in the Heating, Ventilation, and Air Conditioning (HVAC) sector, it is essential to understand how this specialized material differs from standard bare slabs or high-density roofing boards—and why it has become the standard for ductwork and air handling systems.
Technical Breakdown: Foil-Faced vs. Standard Slabs vs. Roofing Boards
To understand the value of foil-faced insulation, we must analyze how it compares to other common industrial rock wool variants in application, density, and physical properties:
| Comparison Metric | Standard Rock Wool Slabs (Bare Slabs) | Roofing Rock Wool Boards | Foil-Faced Rock Wool Boards |
| Primary Application | General wall insulation, partition walls, and industrial ovens. | Flat or low-slope roof assemblies under membrane systems. | HVAC ductwork, air handling units (AHUs), and pipe insulation. |
| Core Mechanical Feature | General thermal and acoustic absorption. | High compressive strength to withstand foot traffic and structural loads. | Excellent vapor barrier control and radiant heat reflection. |
| Surface Treatment | Bare (Unfaced). | Bare, or sometimes coated with bitumen or glass tissue. | Laminated with reinforced Aluminum Foil (FSK/Alu-foil). |
| Density Range | Variable (typically 40 – 120 kg/m³) | Very High (typically 140 – 180 kg/m³) | Optimized for duct wrapping (typically 60 – 100 kg/m³) |
HVAC systems present a unique set of engineering challenges, primarily dealing with sharp temperature differentials, moisture condensation, and high-velocity airflow. Standard rock wool boards or roofing slabs lack the surface characteristics required to survive these conditions.
Foil-faced rock wool boards address these challenges through three engineered advantages:
HVAC ducts often transport cooled air through warm building plenums. This temperature differential naturally creates a dew point on the exterior of the duct.
The Risk: If moisture penetrates bare rock wool, the water displaces air pockets within the fibrous matrix, drastically increasing thermal conductivity and rendering the insulation useless.
The Solution: The aluminum foil facing acts as a zero-permeability vapor barrier. It stops ambient humidity from reaching the cold duct surface, completely eliminating the risk of condensation, mold growth, and subsequent corrosion under insulation (CUI).
Standard rock wool relies solely on trapped air inside its stone fiber matrix to slow down conductive and convective heat transfer. Foil-faced boards introduce a third mechanism: radiation control.
The reflective outer aluminum layer reflects up to 95% of radiant heat energy away from the duct system. This dual-action protection—reflective on the outside and conductive-resistant on the inside—dramatically reduces energy loss in large-scale central air systems.
In HVAC environments, keeping the indoor air quality (IAQ) clean is paramount.
Bare rock wool slabs can shed micro-fibers if exposed to friction or minor air movement during installation or maintenance. The secure lamination of a reinforced foil facing completely seals the rock wool core. This ensures that no loose fibers can escape into the building's air circulation or ventilation pathways.

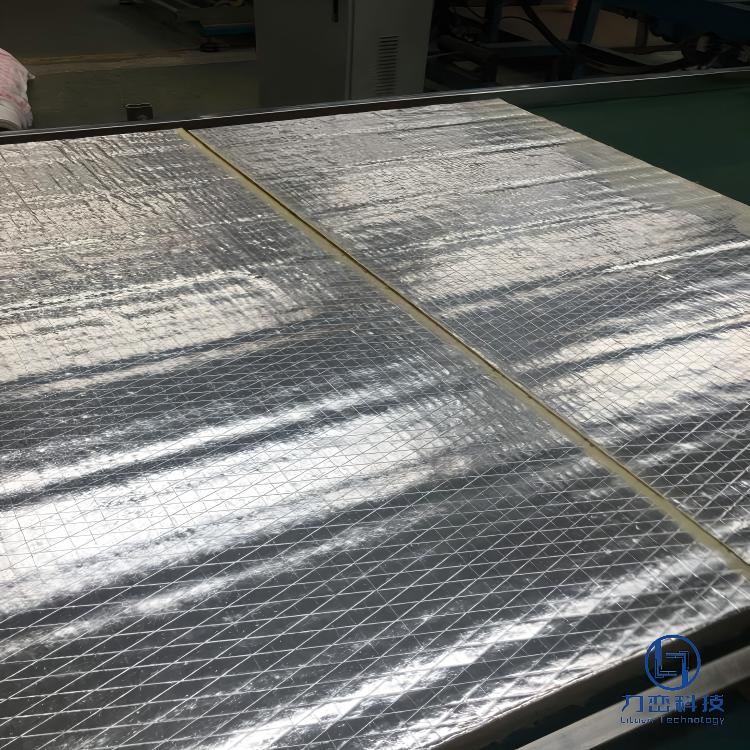

An effective foil-faced rock wool board is not just a standard slab with foil glued onto it. The manufacturing process requires careful calibration:
The Base Slab Selection: The base rock wool must have high dimensional stability and uniform fiber distribution. Unlike rigid, heavy roofing boards that are too brittle to wrap around rectangular ducts, HVAC boards require a balanced density (usually 60-80 kg/m³) that provides structural rigidity while allowing for clean, mitered corner cuts.
Reinforced Lamination: Premium HVAC boards utilize FSK (Foil-Scrim-Kraft) or fiberglass mesh-reinforced aluminum foil. This reinforcement prevents the foil from tearing during the tight folding and pinning processes required during duct installation.
For international EPC projects and HVAC contractors, substituting a specialized foil-faced board with generic insulation or heavyweight roofing slabs to save on initial material costs is a high-risk strategy. Without a proper vapor barrier and optimized density, systems face premature thermal failure and condensation damage.
Technical Specifications & Custom Sizing
Anhui Liluan Technology manufactures high-performance foil-faced rock wool insulation tailored for global HVAC specifications. We offer customizable densities, thicknesses, and facing reinforcements to meet strict international fire and thermal standards.
